Two input class AB output stage produced from '55 to '60
Schematic

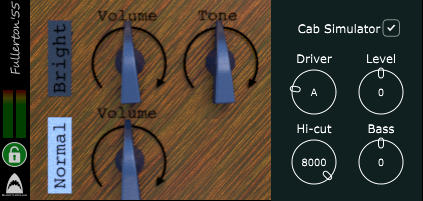

Normal and Bright inputs with the Bright channel having a tone control. Note that the volume controls of each channel affects the volume of the other channel a lot. There's no feedback on the power amp so the two 6V6GT valves can saturate as much as they like.
Click to enlarge
£24.00
×
Schematic
Normal and Bright inputs with the Bright channel having a tone control. Note that the volume controls of each channel affects the volume of the other channel a lot. There's no feedback on the power amp so the two 6V6GT valves can saturate as much as they like.
